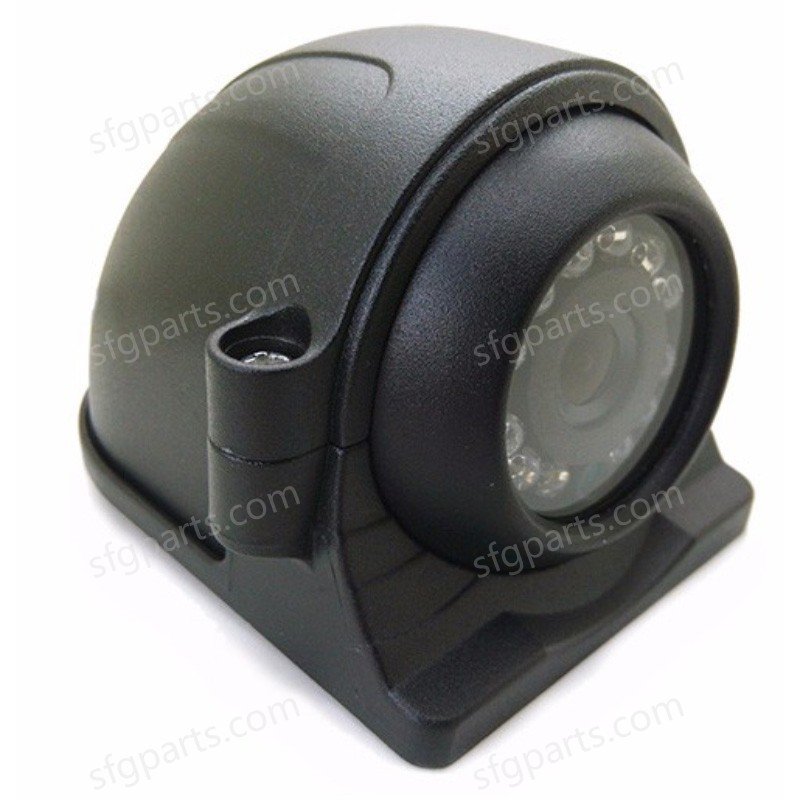

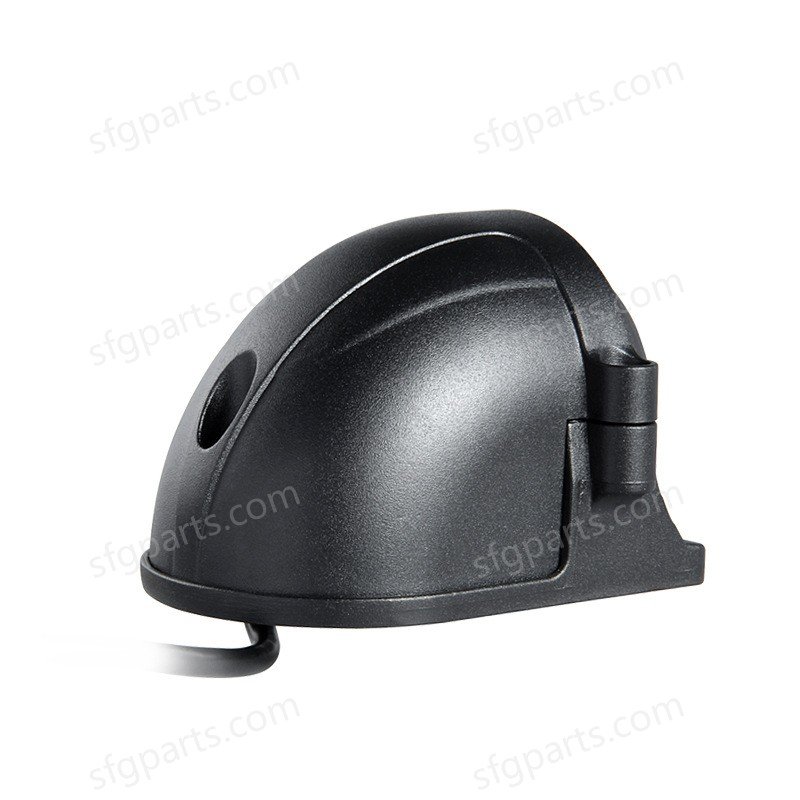

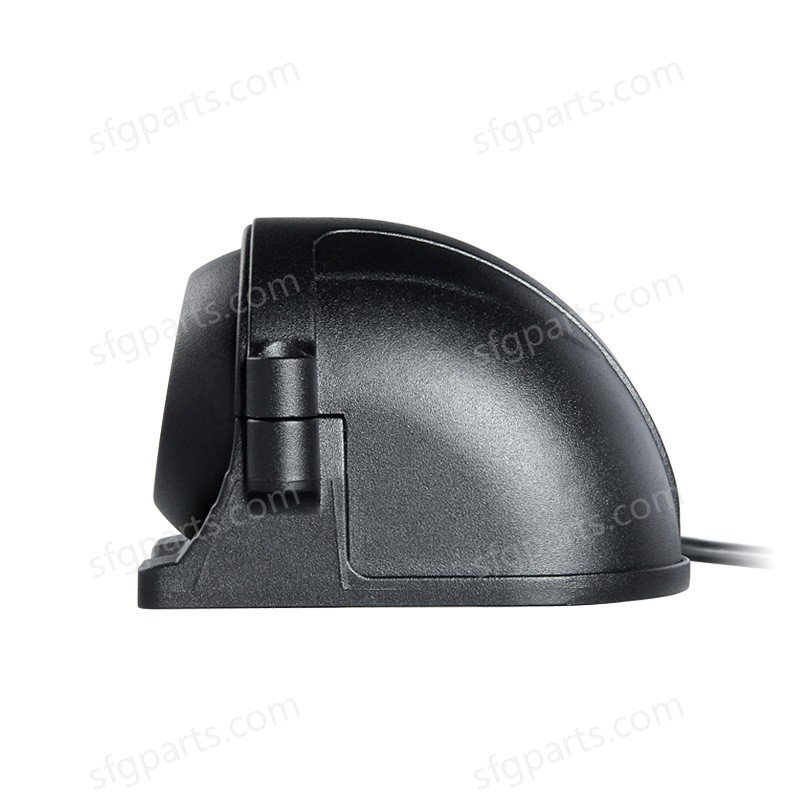

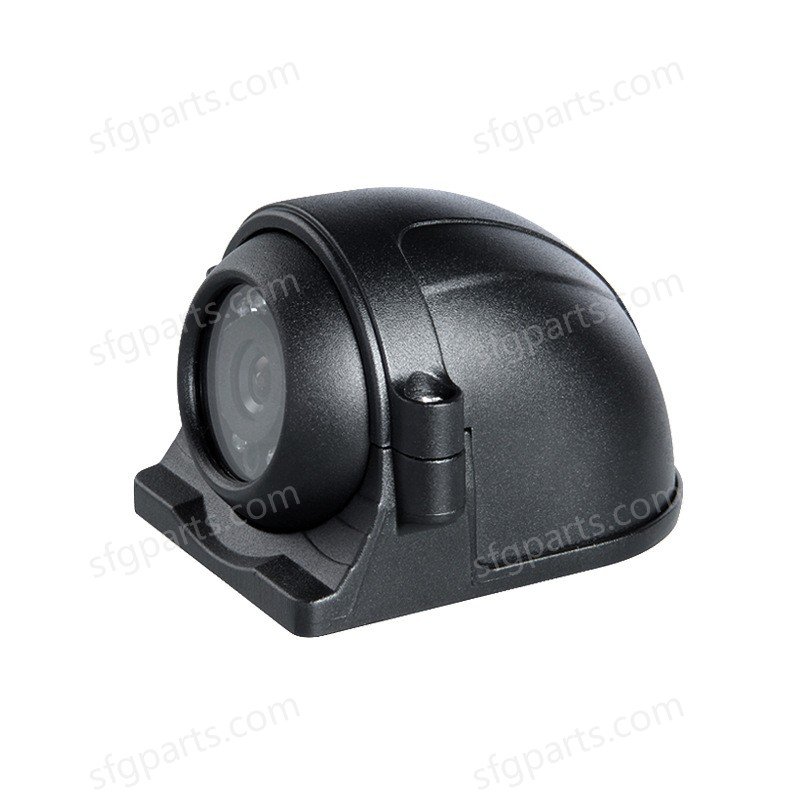

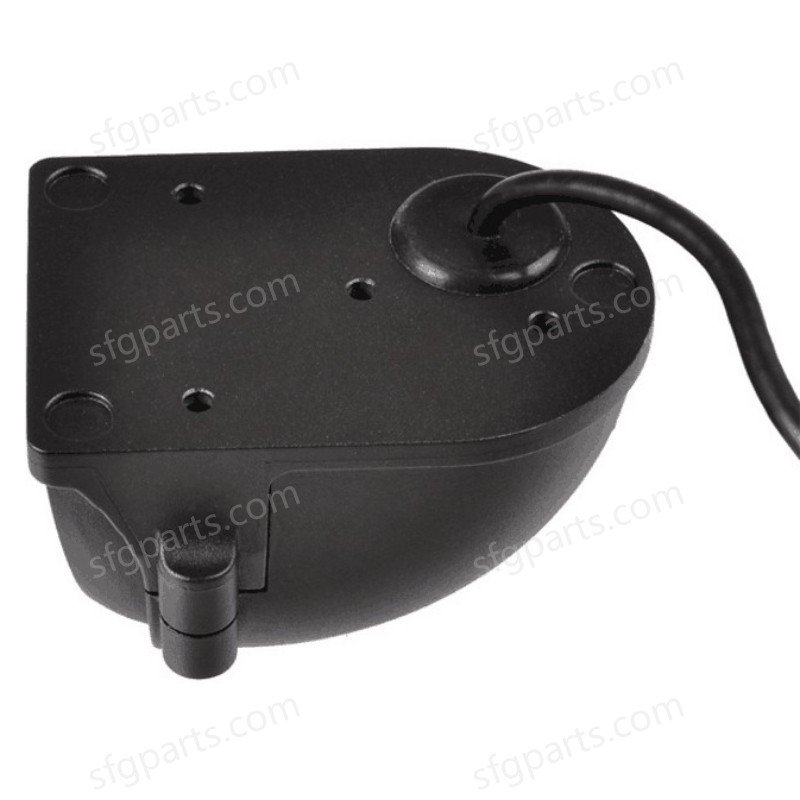

Megapixel AHD Car Camera | 720P/1080P | IP68 | 12 IR LEDs | Wide-Angle Vehicle Camera

Key Features

Megapixel AHD Output (720P / 1080P)
Multiple CMOS Versions: 1.0MP / 1.3MP / 2.0MP / Starlight CMOS

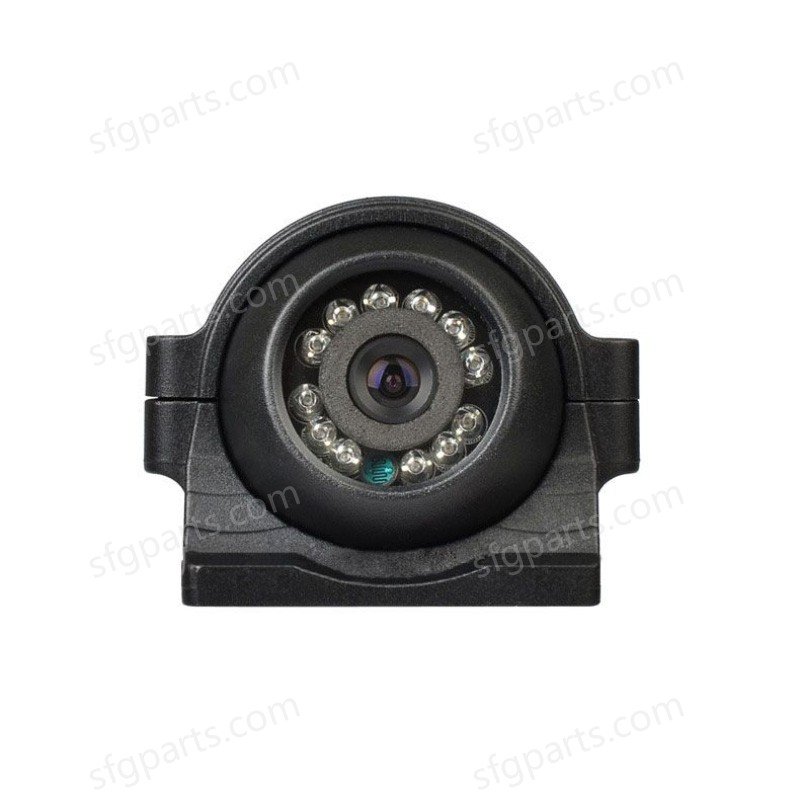

Advanced IR Night Vision: 12pcs IR LEDs, night distance ≤ 8 meters
IP68 Waterproof Rating – supports all-weather operation
Lens Options: 2.1mm / 2.8mm / 3.6mm / 6mm / customized
Digital WDR (depending on version)
Automatic White Balance & Backlight Compensation

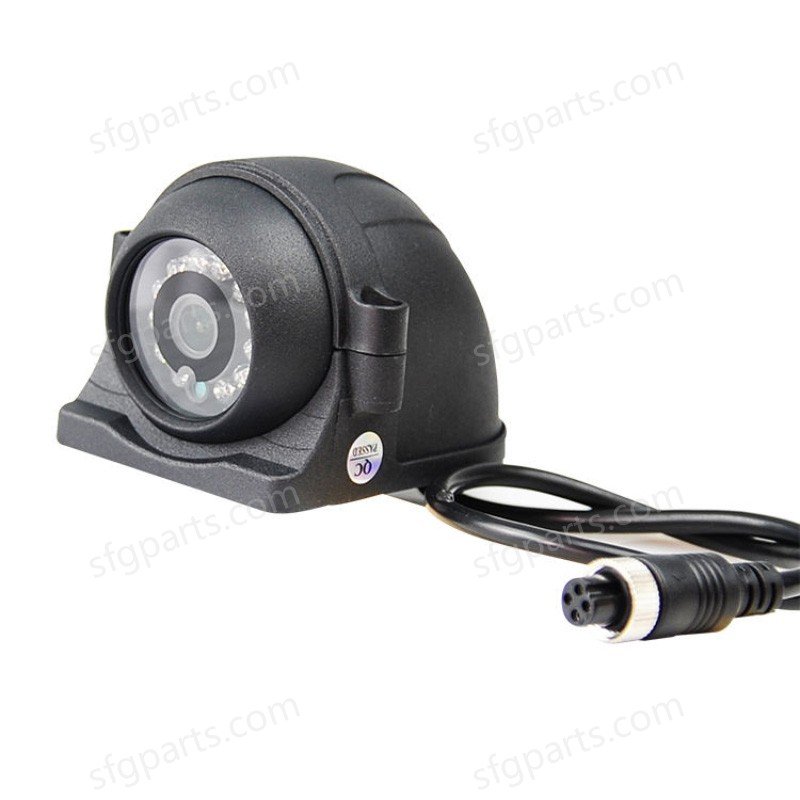

Aviation Plug Output (4Pin) – stable transmission, compatible with MDVR
DC12V ±10% power supply, low power consumption ≤3.5W

Technical Specifications

Item	Specification
Image Sensor	1/4″ CMOS / 1/3″ CMOS / 1/3″ Starlight CMOS / 1/2.9″ CMOS / 1/2.8″ Starlight CMOS
Horizontal Resolution	1.0MP, 1.3MP, 1.3MP, 2.0MP, 2.0MP
TV System	PAL / NTSC
Effective Pixels	1280×720 / 1280×960 / 1920×1080
Minimum Illumination	0.1Lux / 0.05Lux / 0.01Lux (Starlight), 0Lux with IR
S/N Ratio	≥41dB / ≥45dB / ≥60dB / ≥56dB / ≥69dB
Day & Night Mode	EXT(default), AUTO, COLOR, B/W, IR-CUT supported
Backlight Compensation	Auto
White Balance	Auto
Electronic Shutter	AUTO / 1/50(1/60)–1/50,000 Sec
WDR	Digital WDR (varies by model)
Video Output	AHD Standard, 720P or 1080P output
Lens Options	2.1mm / 2.8mm / 3.6mm / 6mm / others optional
IR LEDs	12pcs
IR Distance	≤8m
Waterproof Grade	IP68
Operating Temperature	–20°C to +70°C
Power Supply	DC12V ±10%
Power Consumption	≤3.5W

Connection Diagram

4P Aviation Connector (RS765-4 Female)

1 — 12VDC (+)
2 — GND (–)
3 — AUDIO
4 — VIDEO

Installation Notes

Ensure the power is OFF before installation.
Confirm correct voltage (DC12V). Wrong voltage may damage components.
Avoid humid, overheated, or poorly ventilated environments.
Installation must be performed by trained technicians.
If abnormal behavior occurs, disconnect power and contact local dealer.

Applications

Truck rear-view / side-view
Bus passenger monitoring
Fleet management
Trailer & RV cameras
Construction machinery
Taxi / logistics vehicles
Inside-cabin monitoring
Blind spot elimination
