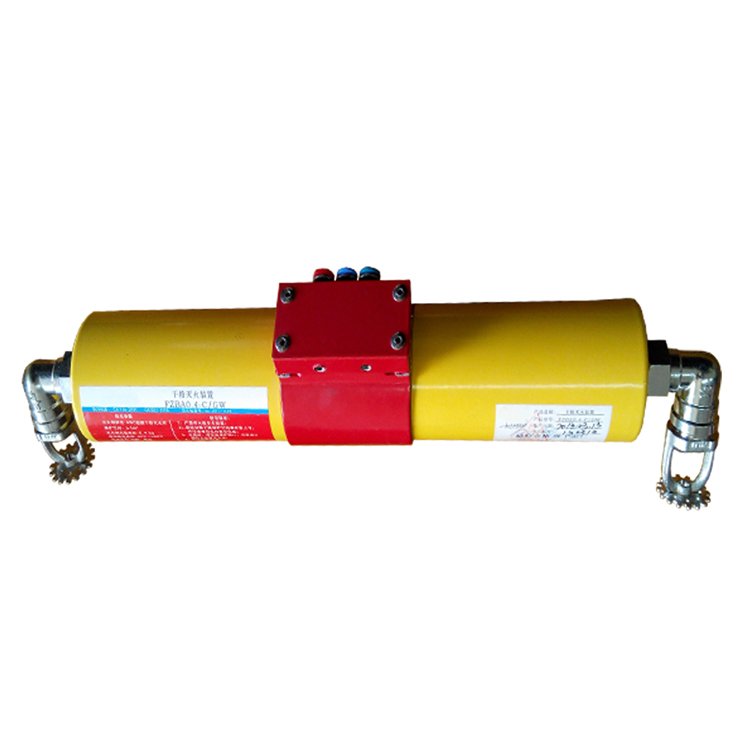

FFX‑ACD0.4‑GKC Ultrafine Dry Powder Fire Suppression System

The FFX-ACD0.4-GKC is an automatic fire suppression device designed for confined spaces like vehicle engine compartments. It uses ABC ultrafine dry powder to deliver rapid, reliable fire suppression with dual activation modes for enhanced safety.

Specification	Details
Extinguishing agent	ABC ultrafine dry powder
Agent weight	400±20 g
Start-up mode	Electric control + thermal control
Injection time	≤ 5 seconds
Operating temperature	-40°C to +90°C
Safe current	≤ 250 mA
Start-up current	≥ 800 mA
Operating voltage	DC 9–24 V
Interface type	282104-1
Signal feedback	282080-1
Net weight	1300±50 g (without bracket and lose powder tube)
Dimensions	Φ60 × 413 mm

Core Features

High-efficiency suppression: ABC ultrafine dry powder provides fast, non-toxic fire control.
Dual activation: Electric and thermal start-up modes ensure reliable operation in critical situations.
Rapid response: Extinguishes fires in ≤5 seconds to minimize damage.
Wide temperature range: Operates reliably from -40°C to +90°C, suitable for extreme environments.

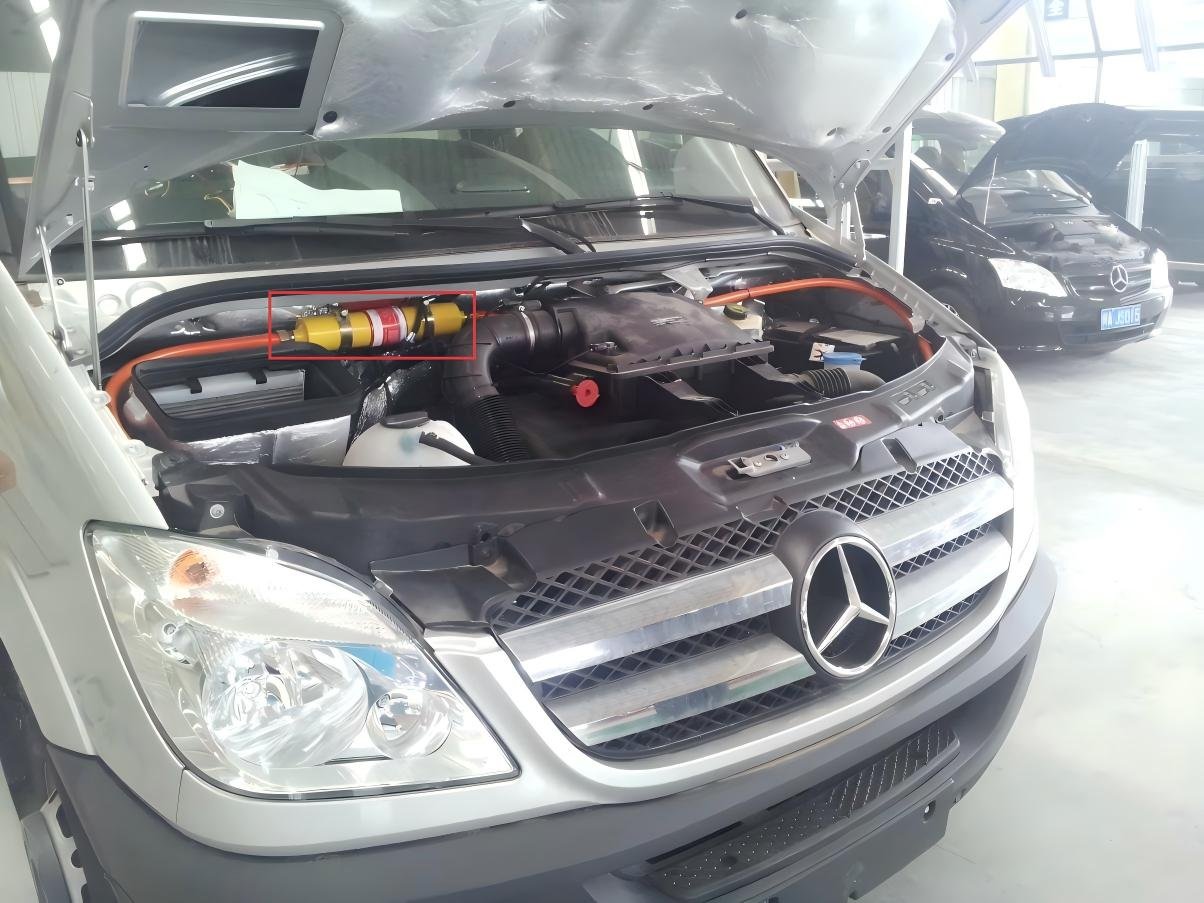

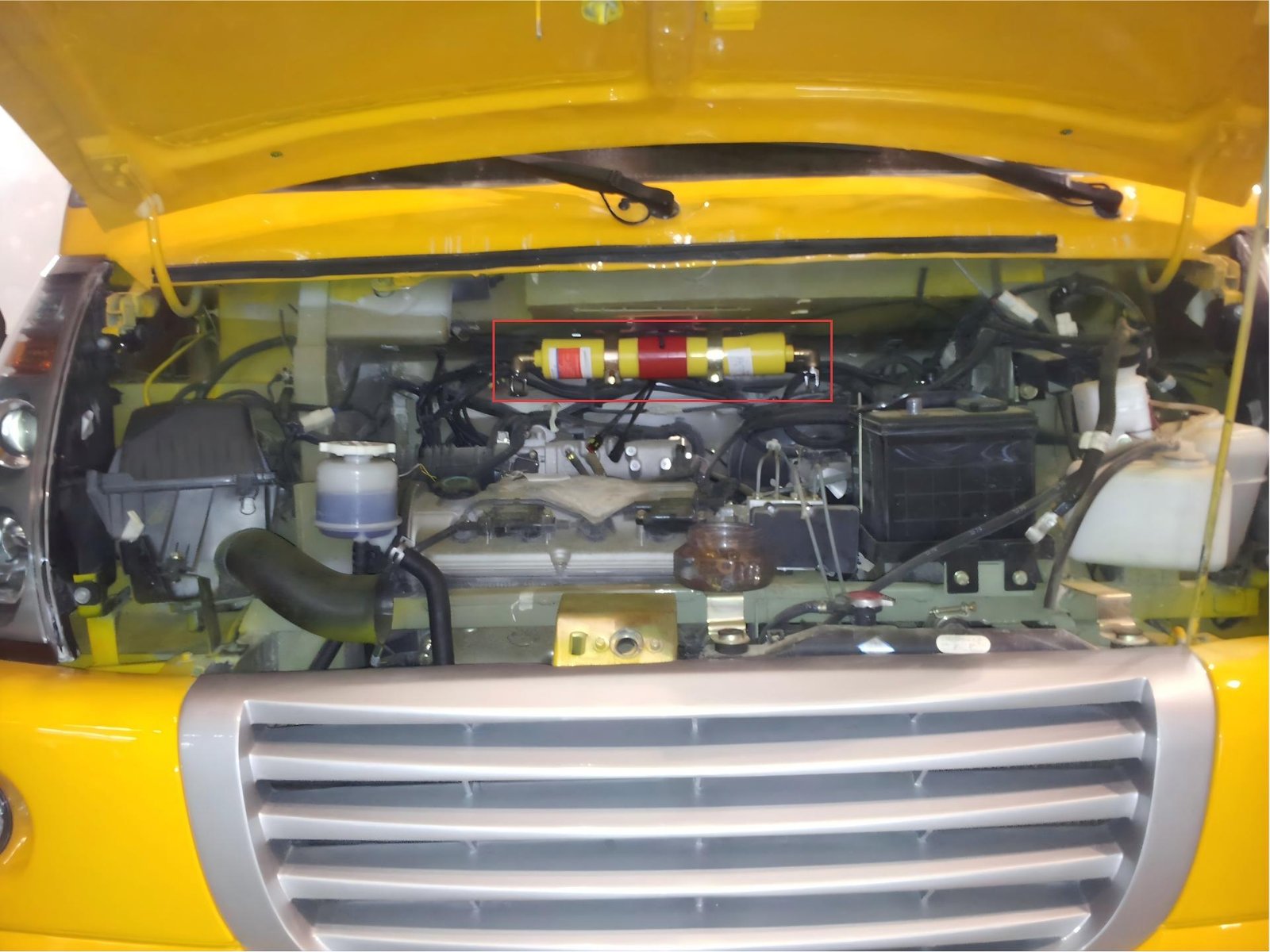

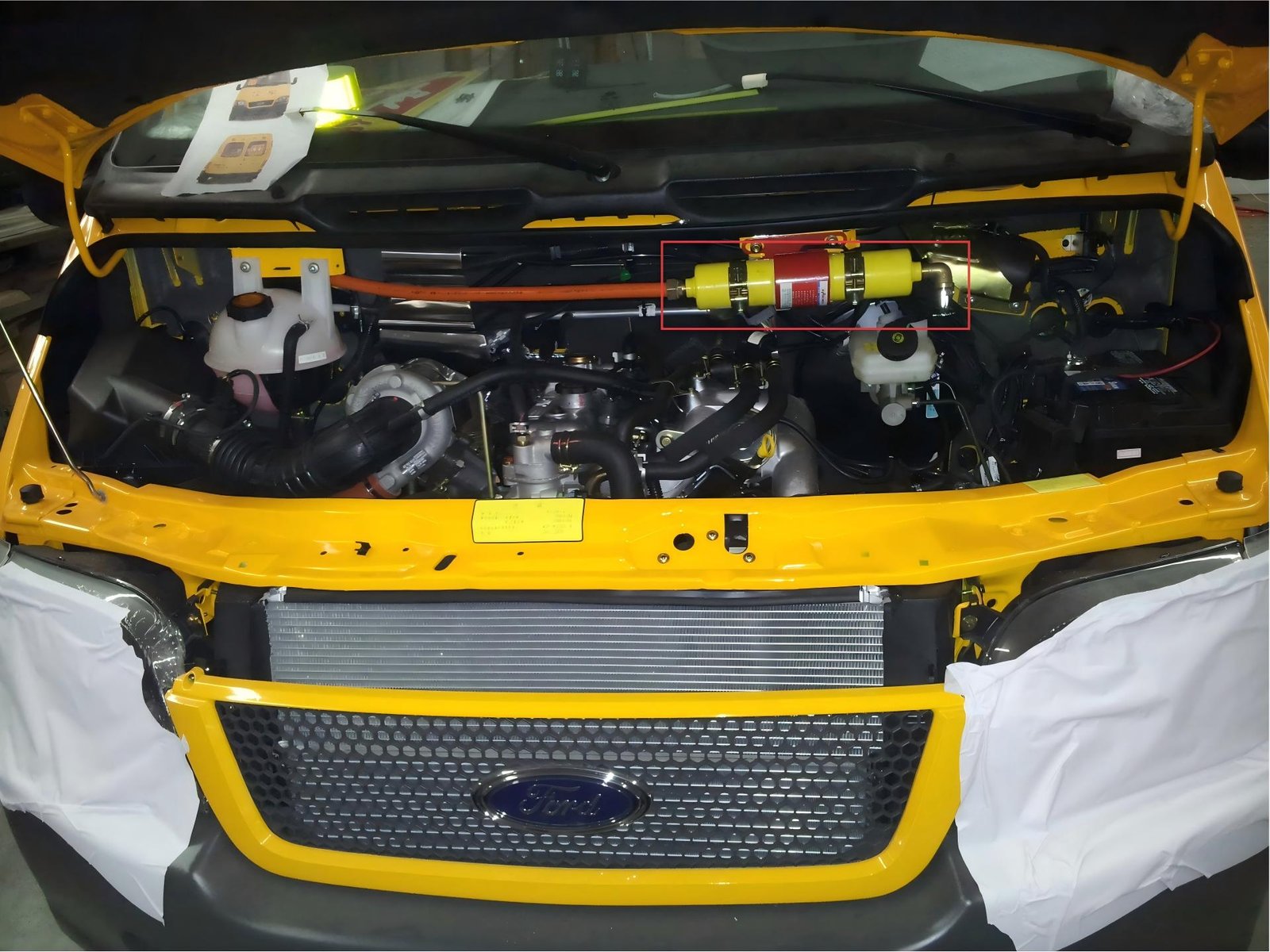

Compact design: Φ60 × 413 mm dimensions allow easy installation in tight spaces like engine bays.
System integration: Signal feedback capability enables connection to vehicle monitoring systems.
