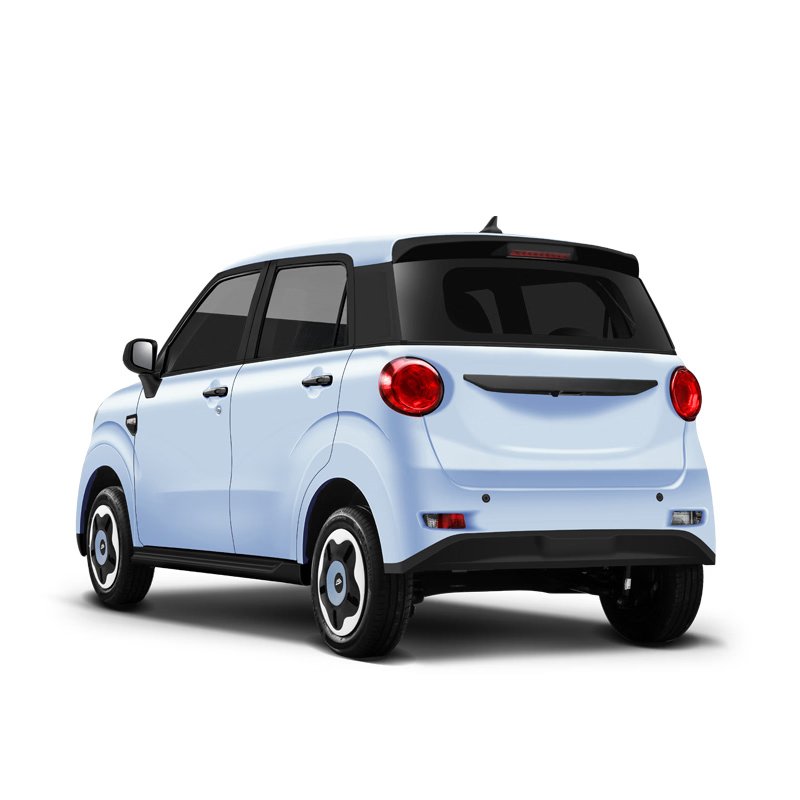

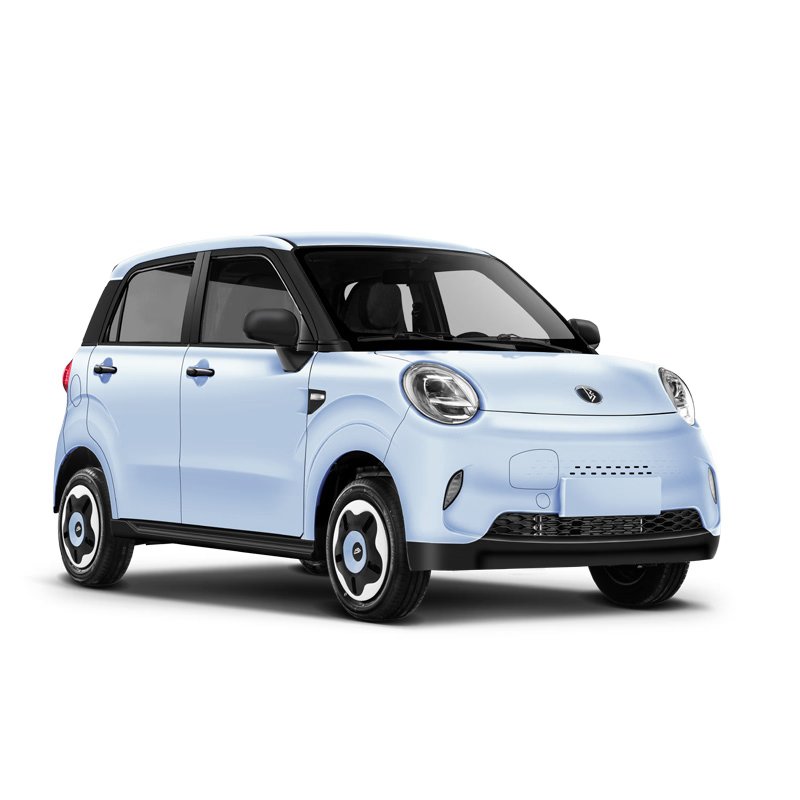

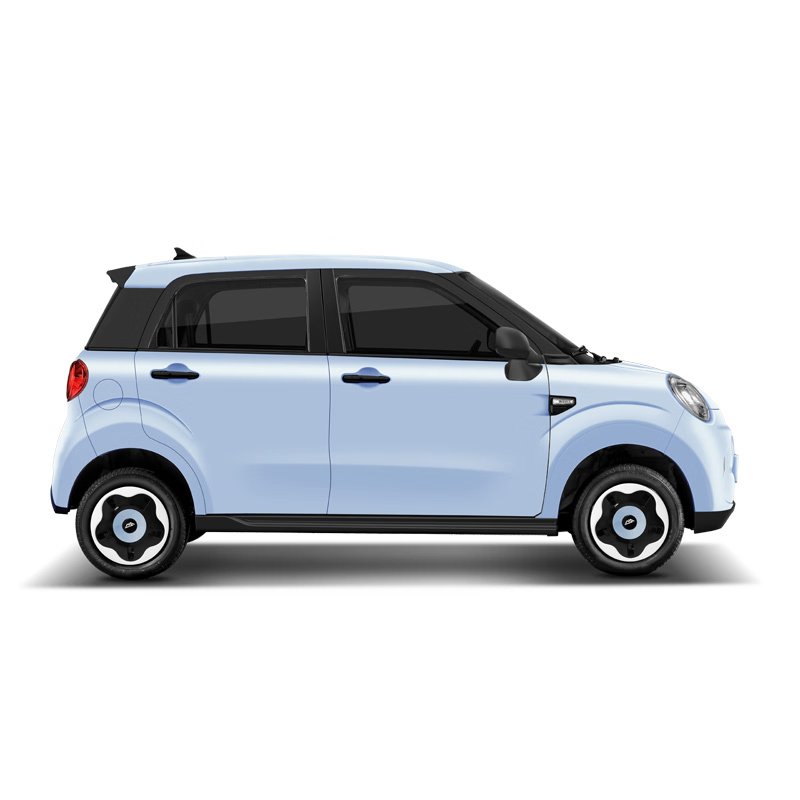

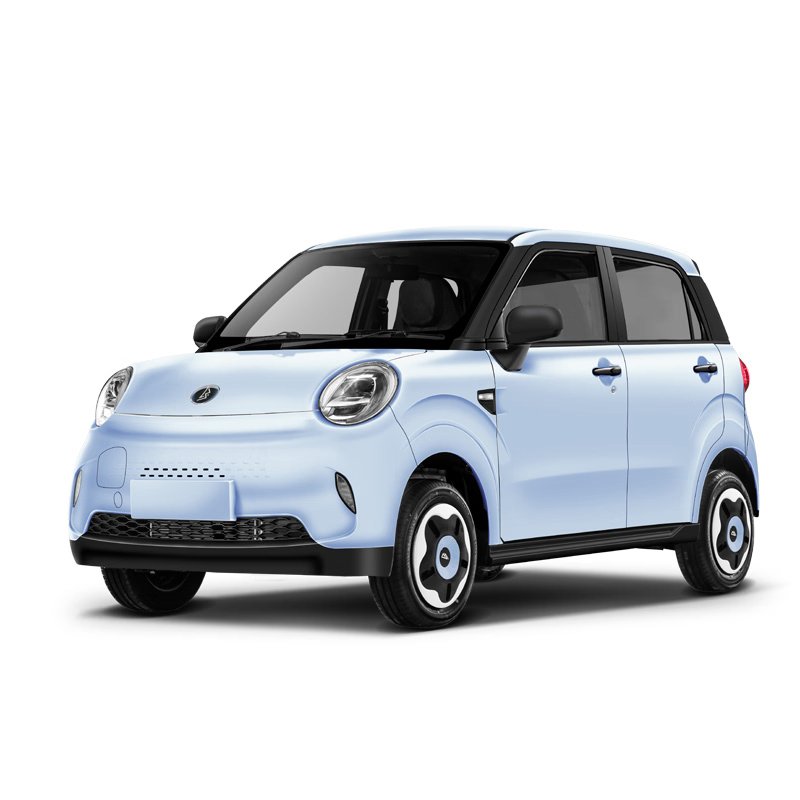

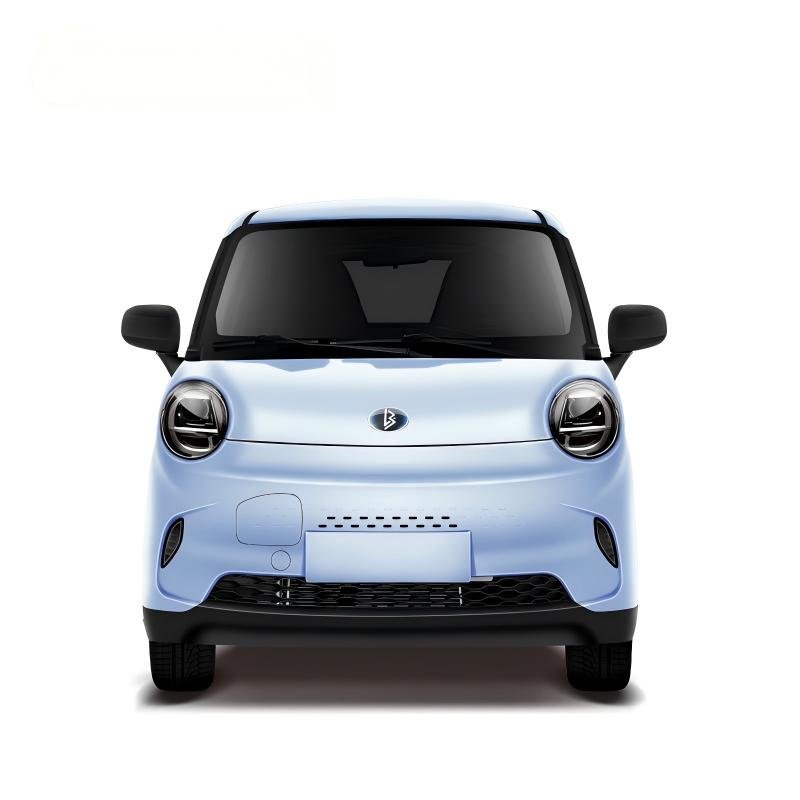

Model BOX combines solar-assisted charging with a high-performance motor for an eco-friendly and efficient transportation solution. Equipped with a 20KW motor, 45KW peak power, and a 17.69 KWh lithium iron phosphate battery, this high-speed electric vehicle delivers a top speed of 102 km/h and a range up to 120 km depending on the model.
Built for urban commuting, fleet operations, and last-mile delivery, Model BOX ensures optimal energy efficiency with solar panels, a braking energy recovery system, and an intelligent battery management system (BMS). Designed for sustainable mobility, it provides an ideal solution for commercial fleets and individual use.
| Feature | Specification |
|---|---|
| Motor Type | PMSM (Permanent Magnet Synchronous Motor) |
| Battery Type | Lithium Iron Phosphate (LiFePO4) |
| Battery Capacity | 17.69 KWh |
| Solar Panel | 300W, IBC Mono-Crystalline Silicon |
| Charging Method | AC 220V (6-8 hours for SOC 20%) |
| Braking System | F-Disc (Front), R-Drum (Rear) |
| Steering Type | EPS (Electric Power Steering) |
| Safety Features | Driver’s Airbag, ABS, Three-Point Seat Belt |
| Braking Energy Recovery | Yes, integrated energy recovery system |
| Battery Management | Intelligent Battery Management System (BMS) |
| Weight | 1000 kg (gross weight) |
| Max Load Capacity | 1100 kg |
| Operating Temperature Range | -40°C to +90°C |
| Top Speed | 102 km/h |
| Trunk Volume | 76L |
| Dimensions (L×W×H) | 3584 x 1475 x 1666 mm |
| Feature | 2026 Model A (Version 1) | 2026 Model A (Version 2) | 2026 Model A (Version 3) |
|---|---|---|---|
| Motor Power | 15/30 kW | 15/30 kW | 18.5/35 kW |
| Max Torque of Motor | 95 N·m | 95 N·m | 125 N·m |
| Battery Type | LFP (Lithium Iron Phosphate) | LFP (Lithium Iron Phosphate) | NCM (Nickel Cobalt Manganese) |
| Driving Mileage | 140 km | 205 km | 320 km |
| Battery Capacity | 14.72 kWh | 19 kWh | 31.45 kWh |
| 100 km Power Consumption | 10 kWh/100 km | 10.4 kWh/100 km | 10.4 kWh/100 km |
| Capacity Density of Battery | 110 Wh/kg | 118.32 Wh/kg | 173 Wh/kg |
| Total Weight of Battery | 136 kg | 168 kg | 198 kg |
| Slower Recharge Time | GB/8-10 hours | GB/8-10 hours | GB/8-11 hours |
| Rapid Recharge Time | N/A | N/A | 1.2 hours |
| Electric Quantity for Rapid Recharge | N/A | N/A | 30%-80% |
| Wheel Brake Type | Disc-type | Disc-type | Disc-type |
| Rear Brake Type | Drum-type | Drum-type | Drum-type |
| Max Speed | 101 km/h | 101 km/h | 101 km/h |
| 0-50 km/h Acceleration | ≤9 s | ≤9 s | ≤9 s |
| 50-80 km/h Acceleration | ≤13 s | ≤13 s | ≤13 s |
